Small SMT Production Line for Batch production!
Stencil Printer 4432 / CHMT48VA SMT Pick and Place Machine / Reflow Oven T962A
(CHARMHIGH) YOUTUBE CHANNEL: (working video)
www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA
Small SMT Production line:
1.
| 4432 Stencil Printer Technical Parameters |
| Type: | Manual |
| G.W: | 13kg |
| Maximum print Area: | 320*440mm |
| Packing size: | L 71cm*W 52cm*H 14cm |
2.
| Technical Parameter for CHMT48VA | Dimension | L 960mm*W 655mm*H 285mm |
| PCB Area | 10*10~380*415mm |
| XY Axis travel | 420*460mm |
| Z axis move range | 15mm |
| Pick and Place head | 2pcs |
| Mounting Speed | With vision 3000~4000cph; without vision
6000cph (Note: cph means chip per hour) |
| Working Precision | ±0.025mm |
| Stack | 8mm=22 stack; 12mm=4 stack; 16mm=2 stack;
24mm=1 stack; Front IC=12 stack;
User-defined IC tray=20 stack |
| Vacuum pump | 2pcs in-build (mute) |
| Vision system | Top and bottom dual cameras |
| Computer system inside | Windows7 computer inside, no need external PC |
| Software to genterate CSV file | By Protel 99SE ; Altium Designer |
| Support files | .csv file |
| Touch screen | 7’’ (15.6cm*9.3cm) true color TFT touch screen |
| Support packages | 0402,0603,0805,1206,1210,3528,5050, SO-16,SOT-23,SOT-89,TO-252,SOP,QFN, LQFP....different kinds of IC (max size 22*22mm) |
| Voltage | AC 110V/ 220V, 50/60HZ (supply the plug for your country) |
| Gross weight | 76kg (with wooden box packing) |
3. T962A Reflow oven parameter:
T-962A Reflow Oven Technical Parameters
Supply Voltage: AC220V /50HZ
Putout Power: 1500W
Maximum Soldering Area: 300*320mm
Temperature Range: 0-280
Cycle Time: 1~8 min
G.W: 15kG
Packing size: L 51cm*W 45cm*H 33cm
Pictures as follows:

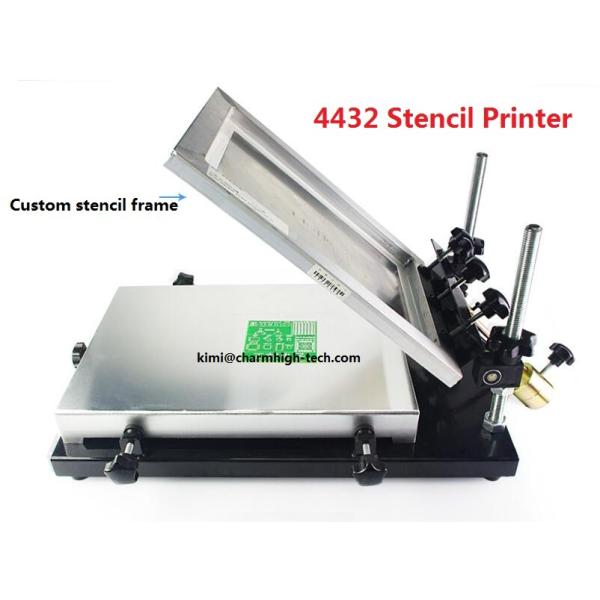

1. Stencil printer Middle size 320*440mm
2. CHMT48A Pick and place machine with Vision System

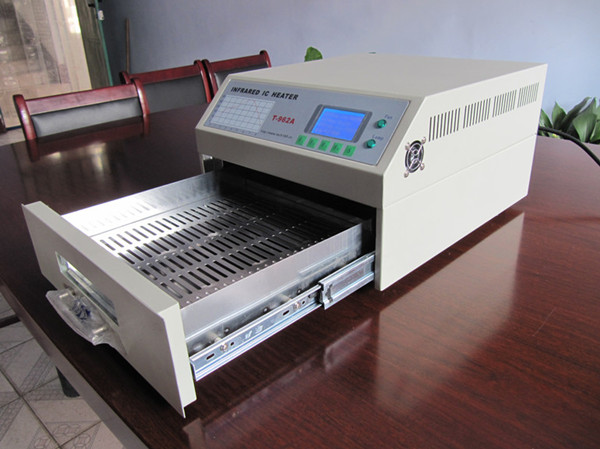

3. Reflow oven T962A:
Applications industry:
Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.
Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
Each machine 100% test well before send out.
Tech support:
Kimi Mob: 0086 135 106 75756
Skype: kimiliu89 .
E-mail: kimi@charmhigh-tech.com
If you want to see more information and videos, please contact us by E - mail.
We will response you at the first time.
(CHARMHIGH) YOUTUBE CHANNEL:
www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA
Standard package service:
The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.
Transportation service:
For package below 200 kg , you can use DHL, Fedex or other express company, For large quantities, you could use sea delivery.
Why choose Charmhigh?
1.Professional design and room saved.
2.User friendly operation, no need professional SMT engineer, entry-level device
3.One machine - Integrated operation, no need extra pump or PC or any supporting facility
4.High accuracy and reliability, make up the defection of manual work
5.Cost efficient, reduce expense to own a professional automatic SMT production line
6.International express with door to door service,3-5 working days delivery
7.Especial for laboratory research and development, samples, to avoid any patents and designs revealment.
8.One machine equal to 5 soldering staff, easy manage and cost-saved. Good for small batch production.
9.Charmhigh Is factory supply, all of our machines parts are researched and manufacturing by ourselves. After-service spare parts never stop.
10. Charmhigh is a professional manufacturer of SMT Pick and Place machine since 2009. All the software are researched by ourselves.
